Ready-to-Install System for a Perfect Fit

The LRS travel wheel system is designed to help you meet your drive requirements quickly and reliably. It is ideal for applications such as transport, feeding, transfer, distribution, and merging operations.

We provide travel wheels and drive units that suit a wide range of applications. These systems come ready to install, feature proven designs, and are available at highly competitive prices.

Key Benefits of the LRS Travel Wheel System:

Suitable for wheel loads up to 6.5 tonnes and travel speeds up to 240 m/min
High-quality spheroidal-graphite cast iron housing for strength and durability
Five connection surfaces that allow multiple mounting and connection options
Modular design for greater flexibility and adaptability
Ideal for OEM applications
Maintenance-free operation for long-term reliability

Product information

Flexibility and Practical Design

The LRS travel wheel system is built on a modular concept, making it easy to adapt to different design and application requirements.

Key Features:

Modular system designed to meet practical engineering needs
Available in three sizes for loads up to 6.5 tonnes and travel speeds up to 240 m/min
Ideal for engineers who want to build their own customized solutions using simple component selection
Can be extended later quickly and cost-effectively if system requirements change
Suitable for push-travel operation or can be fitted with Demag offset and angular geared motors as individual or central drive units

Cost-Effective Solution

Attractively priced standard modules with short delivery times and high availability
Consistently high quality thanks to reliable series productionConsistent high quality ensured through reliable series production

Wide Range of Mounting Options

Horizontal guide rollers
Buffers
Pin connection set
Rail sweeping system
Laser alignment jig

Additional Advantages

Maintenance-free, patented travel wheel bearing arrangement
Gearbox and travel wheel connected via a hollow shaft with involute splines and a perfectly matched torque bracket
All travel wheels include hub splines according to DIN 5480
Travel units provide good ground clearance for rail travel at floor level
High-tensile bolted connections with special surface protection included in the delivery

Engineering and Design Support

For easier planning and project engineering, our web-based planning tool provides valuable design support, including CAD files in various formats. This helps engineers and designers plan and integrate systems more efficiently.

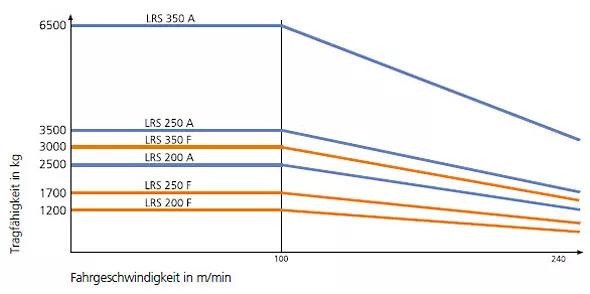

Travel speeds and load capacities:

LRS travel wheel system dimensions

Size / travel wheel	Max. load capacity [t]	Travel wheel dia. [mm]	Weight [kg]	l1 [mm]	d1 [mm]	hA / hF [mm]	b1 [mm]	b2 [mm]
LRS 200 A	2.5	175	15.3	250	175	204.5	52	70
LRS 200 F	1.2	200	15.1	200	200	217	-	70
LRS 250 A	3.5	220	27.6	306	220	255	55	80
LRS 250 F	1.7	250	26.7	250	250	270	-	80
LRS 350 A	6.5	315	63	450	315	349.5	65	95
LRS 350 F	3.0	350	65	350	350	367	-	110

* A = flanged travel wheel made of spheroidal-graphite cast iron

* F = travel wheel fitted with Hydrospur tyre

* Please refer to the DRS travel wheel system brochure for further technical data and dimensions
