Mobile workplace units – load-bearing flexibility

Our KBK portal cranes are the ideal solution wherever a permanent crane would be too complicated or cannot be installed. They run on solid, even floors and can be easily maneuvered in any direction. This makes them ideal for a wide variety of loading and unloading operations in your factory as well as for maintenance and repair work. What other benefits do they offer?

Load capacity up to 3,200 kg
Crane girder span can be adjusted over a wide range
Optimally suited for repair and assembly work
Ideal for help in loading and unloading operations

Product information

Three variants

EVP-KBK single-girder full-portal crane – KBK II or KBK II-H crane girder
ZVP-KBK double-girder full-portal crane – KBK II or KBK II-H crane girders
D-IVP single-girder full-portal crane – I-beam section crane girder (with optional telescopic height adjustment)

Practical applications

Easy to maneuver
Can be simply dismantled for transport
Quickly re-erected at a new operating site

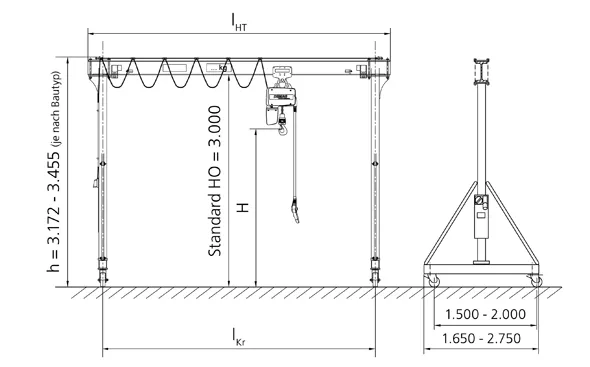

EVP-KBK single-girder full-portal crane

Load capacity [kg]	Track gauge lKr [mm]	Girder length lHT [mm]	Max. lifting height H [mm]
250	2,300 – 5,300	3,000 – 6,000	2,671
315	2,300 – 5,300	3,000 – 6,000	2,619
400	2,300 – 5,300	3,000 – 6,000	2,619
500	2,300 – 4,300	3,000 – 5,000	2,619

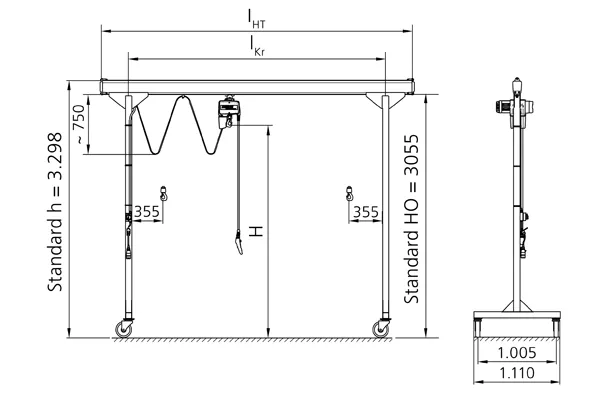

ZVP-KBK double-girder full-portal crane

Load capacity [kg]	Track gauge lKr [mm]	Girder length lHT [mm]	Max. lifting height H [mm]
400	2,300 – 5,300	3,000 – 6,000	2,844
500	2,300 – 5,300	3,000 – 6,000	2,844
630	2,300 – 5,300	3,000 – 6,000	2,755
800	2,300 – 4,300	3,000 – 5,000	2,755
1,000	2,300 – 4,300	3,000 – 5,000	2,755

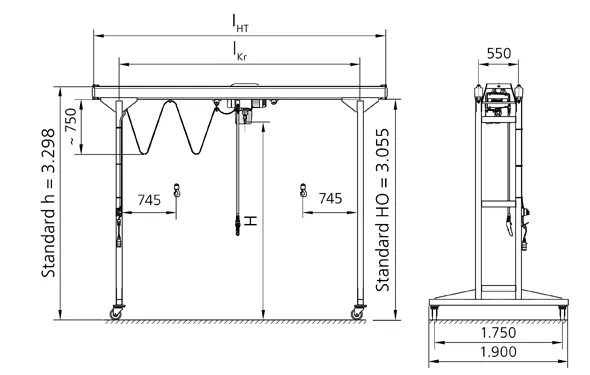

Single-girder full-portal crane with I-beam girder

D-IVP single-girder full-portal crane with I-beam girder

Load capacity [kg]	Track gauge lKr [mm]	Girder length lHT [mm]	Max. lifting height H [mm]
250	3,105 - 6,105	3,445 - 6,445	2,584
500	3,105 - 6,105	3,445 - 6,445	2,532
1,000	3,140 - 6,140	3,510 - 6,510	2,443
1,600	3,160 - 6,160	3,690 - 6,690	2,339
2,000	3,160 - 6,160	3,690 - 6,690	2,339
2,500	3,200 - 6,200	3,770 - 6,770	2,339
3,200	3,200 - 6,200	3,770 - 6,770	2,248

KBK portal cranes
