Demag KBK Aluline Light Crane System — Where Ergonomics Meets Productivity

The numbers don't lie. International studies consistently show that better workplace ergonomics leads directly to higher productivity. So the question isn't whether ergonomics matters — it's whether your equipment is keeping up.

That's exactly where the KBK Aluline comes in.

We didn't just improve our light crane system — we completely redefined what smooth running means. The result is one of the smoothest-running systems on the market today, making every movement easier, more controlled, and less physically demanding for your operators.

The benefits speak for themselves. Your team gets more ergonomic workflows, more convenient load handling, and a system that now confidently handles loads of up to 2,000 kg. Whether you're running an assembly line, a workshop, or a full production facility, the KBK Aluline is built to help your people work smarter — every single day.

Smart Planning Starts with the Right System

Every workspace is different — and the KBK Aluline is designed with that in mind.

Our optimised and modular KBK Aluline components are built to address spatial challenges right from the planning stage. Nothing is left to chance. Our optimised trolleys reduce approach dimensions, helping you make the most of every inch of available space without compromise.

And it doesn't stop there. During the project engineering phase, planners get greater flexibility than ever before. Larger distances between suspensions and the option of an integrated conductor line mean less installation work, lower assembly costs, and a smoother path from design to operation.

Ready for Change, Whenever It Comes

Business needs evolve — and your crane system should be able to keep up.
That‘ss why KBK additional components are designed to give installation owners the flexibility to adapt at any time. Take variable travel path limitation, for example. It allows you to restrict travel motions in just a few simple steps — no complicated procedures, no lengthy downtime. Quick to install and easy to adjust, it's the kind of practical solution that makes a real difference on the ground.

Product information

Optimum Ergonomics

  • Convenient and ergonomic push-travel operation made easier by low crane deadweights
  • Designed to support fatigue-free operation throughout the working day
  • Significantly reduces physical strain on workers
  • Helps lower absenteeism and illness-related downtime
  • Boosts employee satisfaction and overall morale
  • Creates an optimum workplace setup with a comprehensive range of chain hoists and load handling attachments

Highly Cost-Effective

  • Delivers maximum value and efficiency across the entire product service life
  • Fully compatible with existing KBK Aluline systems — no need to start from scratch
  • Smart combinations with steel profile sections allow larger distances between suspensions
  • Overhead materials handling frees up valuable floor space along production lines or assembly stations

Maximum Flexibility

  • Modular system design based on a simple construction-kit principle
  • Suitable for a wide range of applications from push-travel and electric systems to pneumatic and fully automated installations
  • New components can be added or existing units replaced quickly and easily
  • Aluminium and steel profile sections can be combined within a single installation
  • Short delivery times thanks to parts being readily available from stock

Valuable Cost Savings

  • Fast and straightforward installation and conversion
  • Reduced forces transmitted to superstructures enable lighter and more cost-effective building design
  • Greater distances between suspensions and joints mean fewer suspension fittings and minimal additional steelwork
  • Simple and cost-effective modification or extension as requirements change

Proven System

  • Continuously tested in our own test centre and through independent external testing
  • High-quality engineering – made in Germany
  • Light crane system developed by the market leader with more than 50 years of experience

Professional Planning Support

  • Free KBK Designer online tool simplifies project engineering for KBK installations
  • Fast and easy configuration including static calculations, parts lists, technical drawings and quotation pricing
  • Direct connection to the Demag Shop order system for quick and reliable ordering

Profile Sections

  • 8 inside-running extruded profile sections available in 5 sizes, two of which feature integrated conductor lines
  • NEW: Demag KBK Aluline profile A28 offers 50% larger hanging distances
  • Easy to install thanks to simple bolted connecting plates
  • Extremely low deadweight combined with high rigidity for reliable performance
  • Compatible with older installations via adapters
  • ITEM-compatible slots for added flexibility

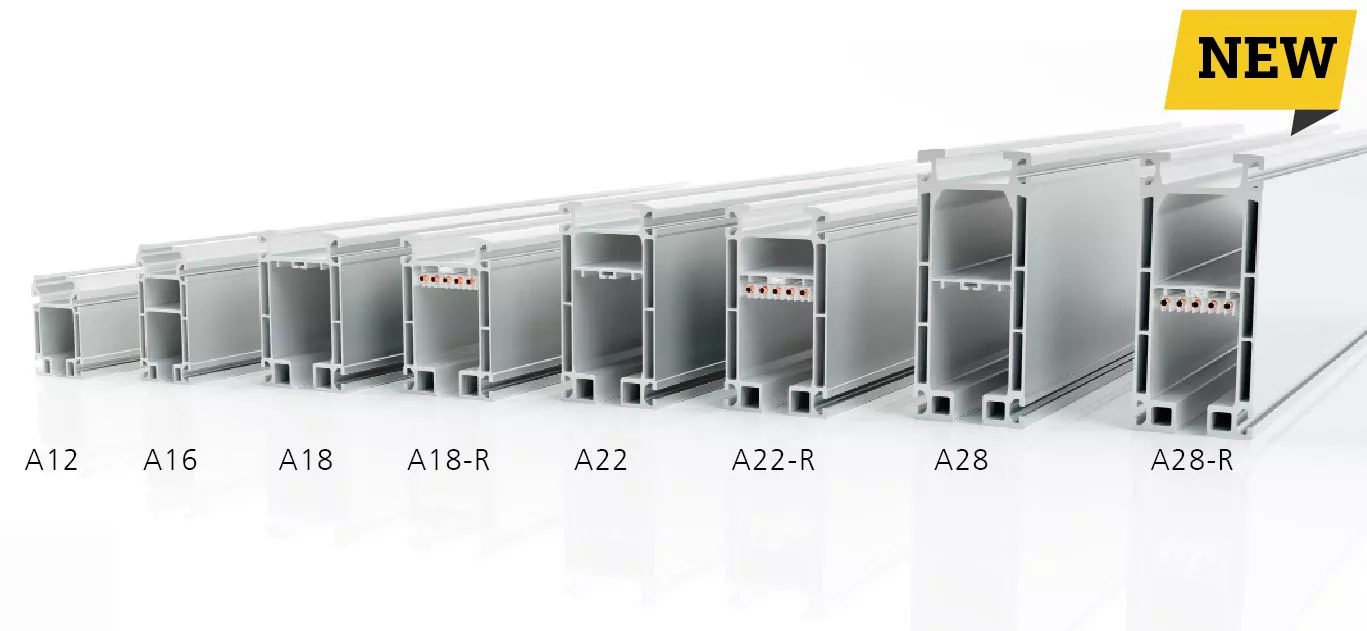

Profile Sections at a Glance

  • KBK Aluline A12 — 120 mm headroom dimension
  • KBK Aluline A16 — 160 mm headroom dimension
  • KBK Aluline A18 — 180 mm headroom dimension
  • KBK Aluline A18-R — with integrated conductor line
  • KBK Aluline A22 — 220 mm headroom dimension
  • KBK Aluline A22-R — with integrated conductor line
  • KBK Aluline A28 — 280 mm headroom dimension
  • KBK Aluline A28-R — with integrated conductor line

Suspension Variants

  • Articulated Classic suspensions for flexible movement
  • Rigid KBK Ergo suspensions for stable applications
  • Can be suspended directly from workshop ceilings or roof structures — no additional support columns required
  • Height-adjustable with millimetre precision for a perfect fit

Profile section/load capacity [kg]1001502505007501,0001,2501,6002,0002,5002,600
A124.63.72.92.01.41.0
A167.05.74.43.12.31.8
A188.08.06.44.53.73.2
A228.08.08.05.94.84.23.62.92.31.81.7
A2810.510.510.59.27.56.55.85.14.23.43.2

Suspension distances [m]
