Angular geared motors

Angular geared motors

A compact solution tailored to meet your needs for every drive application

Great things really do come in small packages. Our angular geared motors are engineered for applications where space is tight, but performance expectations are high.

Whether you're designing for narrow track gauges or complex drive systems, these compact powerhouses slide right in and get to work—quietly, efficiently, and reliably.

What makes them stand out:

  • Serious torque, small space: A broad torque range from 120 to 12,000 Nm to handle the tough jobs.
  • Flexible speed control: A wide selection of transmission ratios to match your exact motion needs.
  • Exceptionally smooth: Engineered for quiet, vibration-free operation.
  • Efficiency built in: The bevel-wheel gearbox design maximizes every bit of energy.
  • Pick your size: Ten different gearbox sizes mean there's one for your project.

Big capability. Tiny footprint. Ready to work.

productDatainformation

Flexibility Where It Counts

  • 10 gearbox sizes with torque from 120 to 12,000 Nm
  • Choose hypoid or bevel-wheel
  • Direct input or coupling connection
  • 5 drive shaft variants
  • 4 housing designs

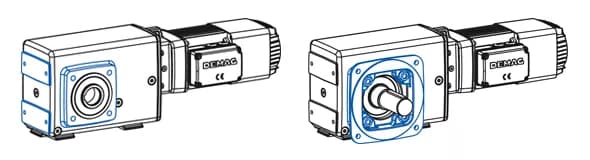

Universal type WU / Flange-mounted type WF

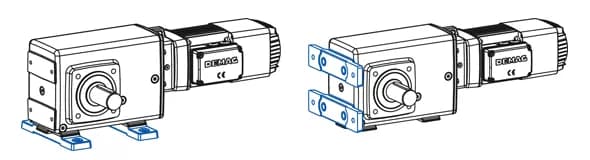

Foot-mounted type 1 WG - bottom connection / Foot-mounted type 2 WG - end connection

W10 to W50 hypoid gearboxes

  • Smooth and quiet by design. The hypoid stage delivers high transmission ratios—so you get more power in a compact package.

Design your drive online it's that easy

The Demag Drive Designer puts you in control:

  • Browse technical data
  • Download 2D and 3D models in any standard format
  • Access electrical circuit diagrams
  • Check delivery times at a glance
  • Send your configuration directly to the Demag Shop
www.drives.demag-designer.com

Type W angular geared motors

SizeTorque (Nm)2-stage Ratio3-stage Ratio4-stage Ratio
W101205.34 - 100-
W202005.45 - 90.197.1 - 369
W303303.73 - 90.1107 - 369
W405003.87 - 90.899.6 - 371
W508004.94 - 94.399.9 - 386
W601350-12.6 - 95.1113 - 388
W702500-13.7 - 102113 - 399
W804000-15.3 - 113126 - 441
W907000-15.9 - 111126 - 434
W10012000-16.5 - 113121 - 485
  • W10-W40: Aluminium
  • W50-W100: Grey cast iron

    Geared motors

    FeatureA offset gearboxesW angular gearboxesD helical gearboxes
    Torque brackets✔️✔️✔️
    Foot rails/plates✔️✔️✔️
    Mounting flange✔️✔️✔️
    Extended temperature range✔️✔️✔️
    Special paint finish✔️✔️✔️
    Special lubricants✔️✔️✔️
    Gearbox venting✔️✔️✔️
    Double gearboxes✔️✔️✔️
    • Mounting flange: Only for sizes D11 - D41
    • Gearbox venting: Standard for size 50
    • Double gearboxes: Used for particularly low speeds
