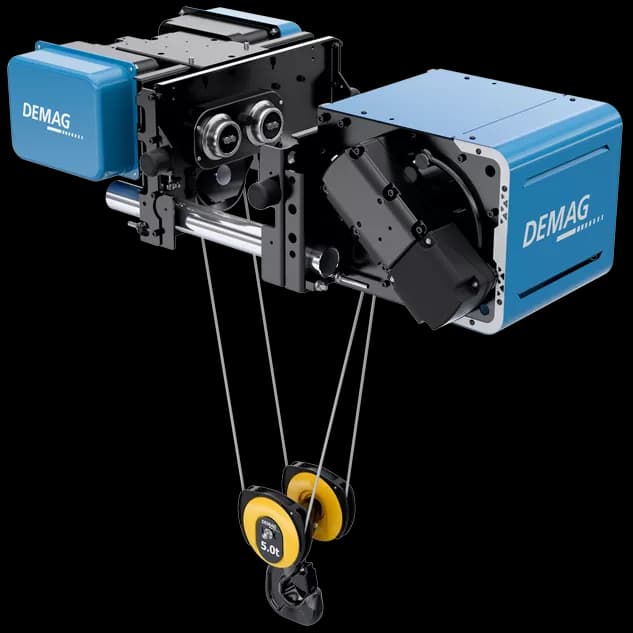

DVR rope hoist

DVR rope hoist

Versatile – that's the Demag DVR rope hoist

Efficient. Productive. And flexible enough to fit just about anywhere you need it.
With a wide product portfolio, the DVR adapts to you—not the other way around. Whether you need a straightforward standard version or a smart high-end solution with intelligent safety features, you get a lifting system that's economical, ergonomic, and ready to work.

The choice is yours

Five sizes. Load capacities up to 80 tonnes. And plenty of ways to build it your way:

Pick your setup:

  • Foot-mounted hoist
  • Low-headroom monorail hoist
  • Double-rail crab
  • Standard-headroom monorail hoist (with or without articulated trolley)

Pick your control:

  • Conventional contactor control
  • Customer-provided control
  • Variable-speed or two-stage drive solutions
  • Cable-connected or radio control

Add what you need:

  • Wide range of options available
  • Smart features for safe, convenient load handling
Dual Drive Hoist

Steel or synthetic? Now you can choose

For the first time, you're not locked in. Stick with proven steel rope or go with our innovative synthetic rope—both get the job done.

Why the synthetic rope stands out:

  • Made from high-modulus polyethylene fibres
  • 12-strand non-rotating construction
  • Around 85% lighter than steel rope
  • Works indoors and outdoors
  • Handles temperatures from -10°C to +45°C
  • No lubrication needed – ever
  • No wear on the rope drum or return sheaves
  • One rope type covers all applications

DualDrive – built for grip and precision

The DHR monorail hoist comes standard with DualDrive, a two-wheel drive system where two of the four wheels are powered by a synchronised belt drive.

What that means:

  • Smooth, reliable cross-travel and positioning
  • Need extra muscle? Add a second cross-travel motor (DualDrive Plus) for tough conditions like outdoor use or heavy dirt on the rails

Thrust rocker – smart design, less weight

No counterweights needed. The DHR hoist trolley uses a thrust rocker to stay balanced, keeping things compact and lightweight. (Counterweights are still available as an option if you prefer.)

Key benefits:

  • Less deadweight
  • Smaller, tighter dimensions

Blue safety light – know where the hook is

A small blue dot of light projects onto the floor, showing exactly where the hook is. Simple. Clear. Adds a layer of safety to every lift.

DHR rope hoist safety light

Product information

Rope guide

All-metal construction. Built to guide the rope precisely—with minimal wear.

Smart design touches:

  • For sizes 10 (optional) and 20–40, a full-circumference rope guide comes as standard
  • Handles diagonal pulls up to four degrees without the rope touching the guide
  • Ropes are galvanised as standard for added durability

Rope guide

  • All-metal construction. Built to guide the rope precisely—with minimal wear.
  • Smart design touches:
  • For sizes 10 (optional) and 20-40, a full-circumference rope guide comes as standard
  • Handles diagonal pulls up to four degrees without the rope touching the guide
  • Ropes are galvanised as standard for added durability

High variability thanks to modular design

  • Modular design lets you configure the rope hoist to fit your needs
  • One basic technology works across a broad range of applications
  • More sizes available
  • Higher load capacities included

Planning and application flexibility

  • Four application types: foot-mounted hoist, low-headroom monorail hoist, double-rail crab, standard-headroom monorail hoist
  • Smart interfaces – easy to add fittings and accessories
  • Control options: contactor control or customer-provided system
  • Digital components available for extra safety functions

Other benefits

  • Reliable mechanical components you can count on
  • Smart features available—more convenience, better safety
  • Real-time remote diagnostics with the Demag StatusControl app

Valuable cost savings

  • Fast and simple installation and conversion – saves time and money
  • Reduced forces on superstructures allow for lighter, more cost-effective building design
  • Greater distances between suspensions and joints mean fewer fittings needed – extra steelwork largely unnecessary
  • Easy and affordable to modify or extend as your needs change

Proven system

  • Continuously tested – in our own test center and by external labs
  • Quality made in Germany
  • Light crane system from the market leader, backed by over 50 years of experience

Professional planning support

  • Free KBK Designer online tool – helps you plan your KBK installation step by step
  • Planning made easy: fast, intuitive configuration with static calculation, parts list, technical drawing, and quotation price all included
  • Direct link to Demag Shop – order simply and reliably with just a few clicks

F-DVR Foot-Mounted Hoist

  • Four mounting positions – each with its own lead-off direction
  • Flexible installation options
  • Load capacity: up to 80 tonnes

EU-DVR Standard-Headroom Monorail Hoist

Variant: EUD-DVR for curved rails

  • Designed for use on monorails
  • EUD-DVR variant available for curved rails
  • Load capacity: up to 40 tonnes

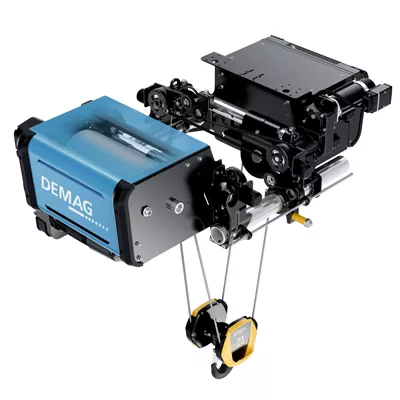

EK-DVR Low-Headroom Monorail Hoist

  • Ideal for crane applications where space is tight – compact dimensions, reduced approach
  • Built-in lift-off and derailment protection
  • Two driven wheels for reliable travel
  • Load capacity: up to 12.5 tonnes

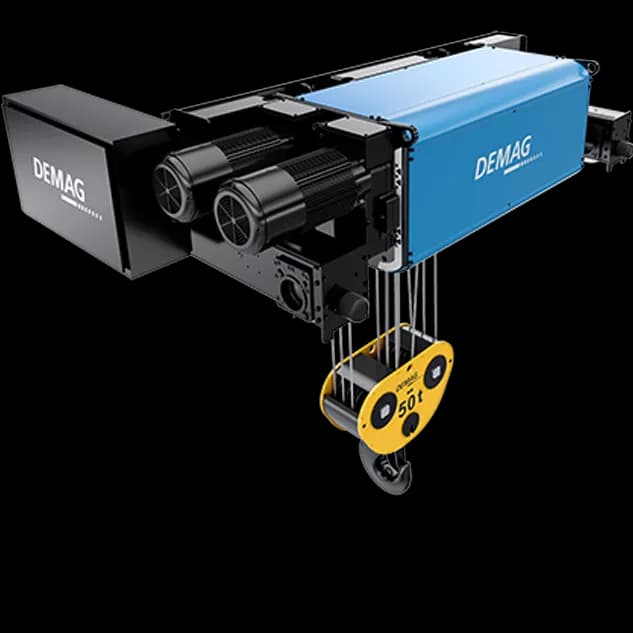

EZ-DVR Double-Rail Crab

  • Works with narrow gauge tracks (from 900 mm)
  • Even distribution of wheel loads
  • Versatile designs – low, medium, or high connection
  • Two drive units – no open gears
  • Optional service platform available
  • Load capacity: up to 80 tonnes
  • Optional: two hoists on one trolley

Technical perfection, right down to the details

Like every Demag product, the DVR rope hoist starts with one question: What do our customers actually need?
The answer is built into every part of it. Flexibility. Productivity. Reliability. Cost-effectiveness.
From the big-picture concept down to the smallest technical detail, the DVR is designed to deliver—without complication.

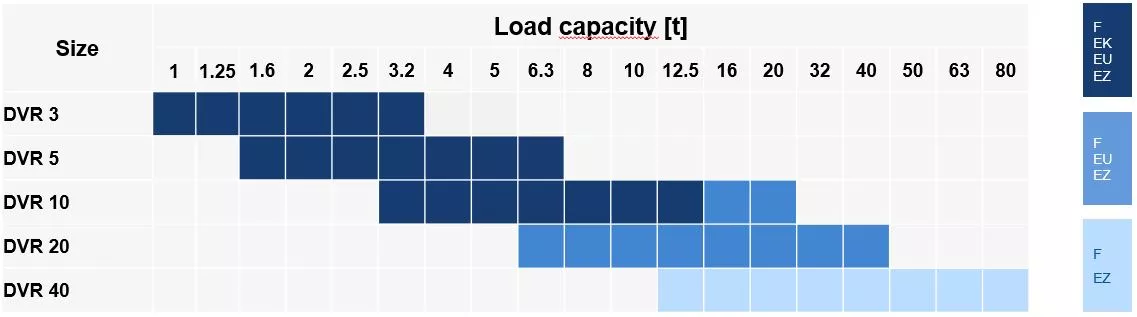

Five sizes

Powerful and precise

At the heart of the DVR is a two-stage cylindrical motor built for smooth, accurate lifting and lowering. With output up to 35 kilowatts, it's got plenty of power when you need it.

Built to last, simple to connect
  • Standard IP55 protection, with IP66 available as an option
  • All motor cables use plug-in connections – true Plug & Play
  • Disc brake delivers high braking torque
  • Designed for one million switching cycles

Up to 100% more speed

Need to move faster? The ProHub ASR and ProHub ESR motor variants are made for exactly that—higher lifting speeds that cut down process times and keep things moving.

ProHub ASR (A-motor):

  • Load-dependent speeds
  • Inverter-controlled speed monitoring
  • Up to 50% higher speed

ProHub ESR (S-motor):

  • Encoder-monitored for precision
  • Delivers maximum power
  • Up to 100% higher speed

Faster handling. Shorter cycles. Same reliability.

  • Two-stage speeds in a compact package – low deadweight included
  • Standard temperature monitoring, lubricated for life (no maintenance hassle)
  • Two-wheel drive gives you solid traction
  • Works indoors and outdoors – no need to special-order
  • Quadro drive available as an option for EZ-DVR

  • Compact design keeps deadweight low
  • DVR hoist housing weighs significantly less than comparable models size for size

  • HBC hook with recessed grip and finger guard – standard for all sizes up to DVR 10 4/1
  • DIN hooks – optional, and standard for larger sizes (DVR 20 and 40)
  • Full 360° hook rotation
  • Optional: lockable hook
  • Optional: insulated version

Controllers – you choose how to run things

We give you full freedom to pick the control that fits your work.

  • Wire-connected and ergonomic: DSB pendant controller – reliable, easy to use
  • DST option – extremely robust, with up to nine control elements

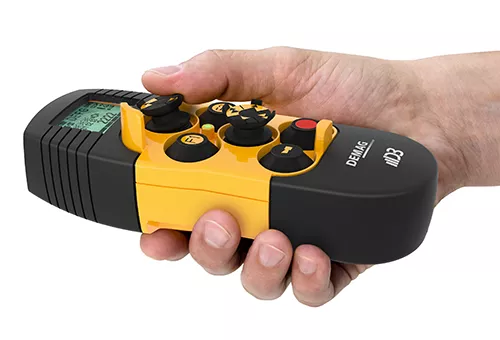

Radio control – high performance:

  • DRC D3 radio control system – maximum freedom of movement
  • Runs up to five days of uninterrupted operation
  • Three transmitters can pair with one receiver – easy to pass control at the press of a button
  • Up to 40 D3 systems can operate nearby without interference
  • Safety features: frequency hopping and listen-before-talk technology

The DVR rope hoist can be equipped to match exactly what you need. Variable-speed drive solutions are available for both lifting and travel motions, using different technology levels.

Why variable speed makes sense:

  • Variable speeds: Choose from 1:10, 1:25, or ESR 1:37
  • Less wear: Smooth starts and stops mean less stress on your crane system
  • Longer life: Motors and brakes last longer
  • Energy savings: Up to 50% less power used

Load-dependent lifting speed – automatic adjustment:

  • High speed without load – up to 100% faster
  • Medium speed with partial load
  • Precise speed at full load

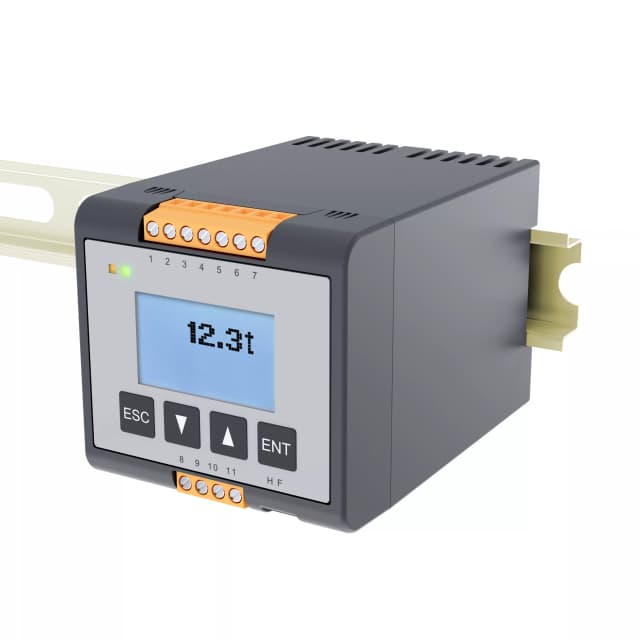

OWL
  • Compact overload protection and status display
  • Keeps things safe and helps you stay ahead of maintenance
  • Overload protection for individual hoists
  • Simple condition monitoring
  • Tracks number of switching operations, operating time, braking operations, control actuations
  • Tracks on-time, temperature index, number of overload events
  • Data can be used for SWP calculation

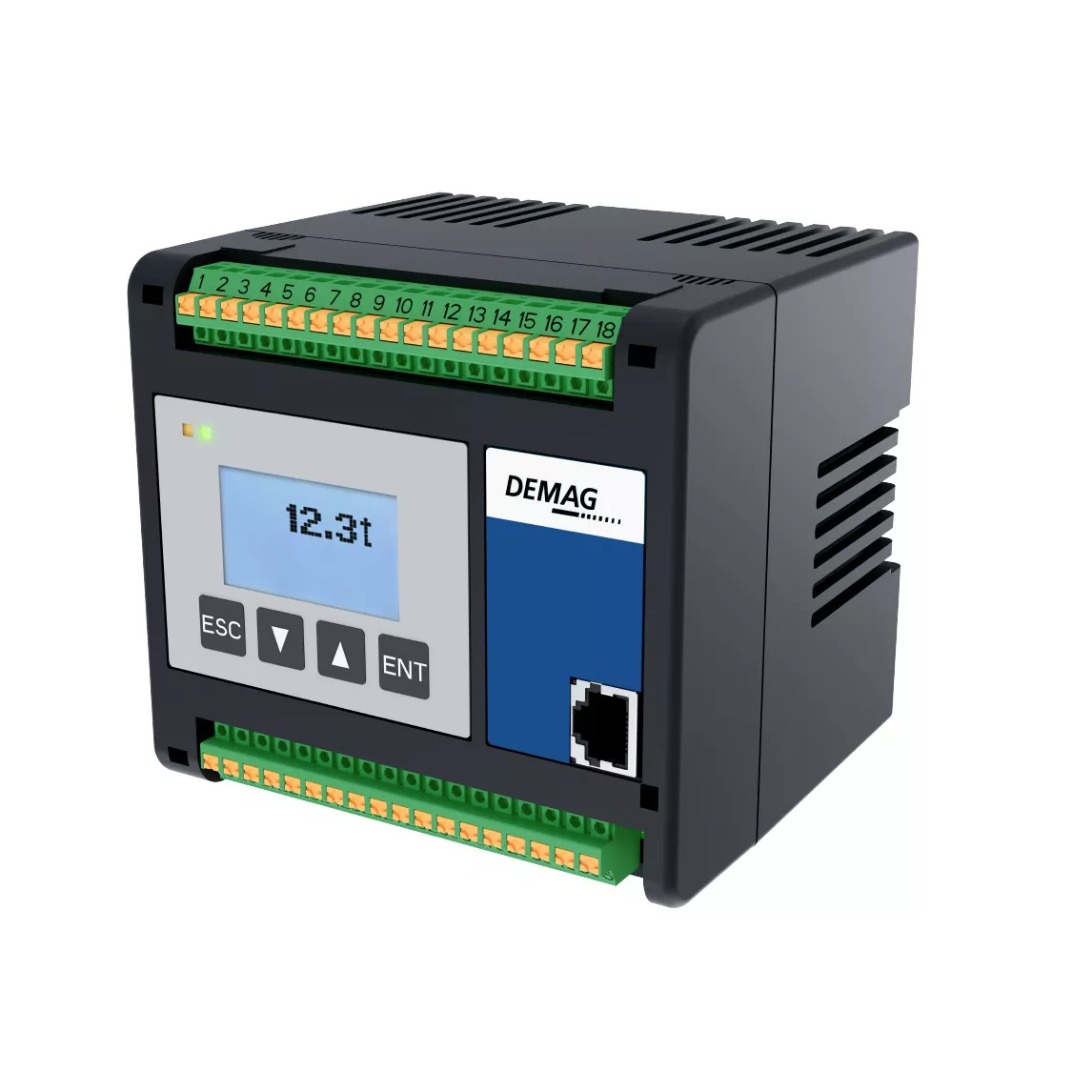

DMU
  • Convenient monitoring unit with CAN bus
  • Designed for better safety, longer brake life, and smarter maintenance
  • Helps identify operator training needs
  • Overload protection
  • Monitors sudden load increase
  • Temperature monitoring of motors
  • SWP elapsed operating time counter
  • Motor function monitoring
  • Motor start/stop by slow speed
  • Multi-hoisting tandem (up to five units)
  • Design limit warnings
  • Optional remote monitoring modem
  • Smart CAN bus features
More options – configure as needed
  • Second hoist brake for DVR 3, 5, 10
  • Drum brake for DVR 20 and 40
  • Halogen-free or silicone-free cables/wires
  • Heating or cooling device for bridge housing
  • Crane lighting
  • Horn
  • Load display
  • Service platform
  • Stainless steel switchgear cabinets
  • Rain cover
  • Explosion-proof design (DXR) available

Optional rain cover, let the crane operate outdoors without worry

Anti-sway control

  • Prevents load sway through active counter-motions
  • Uses rope angle measurement to detect and dampen movement

Slack-rope prevention

  • Continuously monitors rope tension
  • Automatically switches off hoist drive when load is lowered or hook is snagged
  • Reduces risk of damage to load, crane, and surroundings

Area-specific load reduction

  • Define areas where hoist can only enter if load stays below a set limit
  • Reduces stress on runway and building structure—especially with multiple cranes

Bypass control

  • Block specific areas for the travelling hoist
  • Safely avoid machinery or out-of-bounds zones

Tandem control

  • Transport loads safely with two DVR rope hoists
  • Operated from a single control unit

Demag Modular Control (DMC) features

Follow me

  • Guide the hook by hand—crane follows
  • Faster lifting, recommended for cranes up to 10 t

Hook centering

  • Automatically positions hook directly over the load
  • Faster cycles, easier operation

Smart Tandem control

  • Synchronize two cranes with up to four rope hoists
