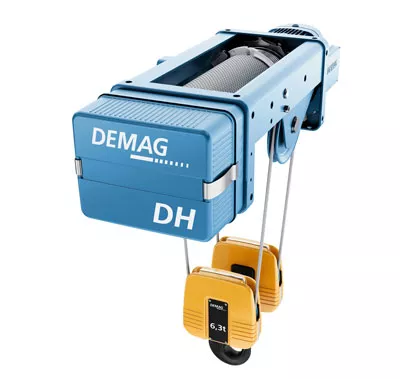

The Demag DH hoist unit fits where you need it—on cranes, monorails, or as a stationary setup. It's built for demanding work, handling loads up to 100 tonnes with care and precision.
But it's more than just lifting power. Installed as a travelling or stationary unit, it integrates smoothly into almost any design. Sometimes you barely notice it's there—until it gets to work.
Built tough
Some environments are just harsh. Foundries. Electroplating plants. High heat. Dust. Aggressive air. The DH is built for these places—rugged, reliable, and ready to withstand what comes at it.
Versatile

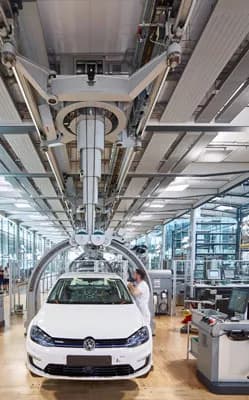

The modular design and flexible mounting options make the DH easy to fit into almost any structure. With plenty of variants and options, the applications are nearly endless. Lifting stations. Winch arrangements. Architectural installations. Sometimes you have to look twice to spot them.
Your Benefits
Rugged design—proven around the world
Easy integration into any setup
Handles high switching frequencies and heavy duty cycles
Precise positioning with mechanical microspeed or frequency-controlled lifting
Load capacity up to 100 tonnes
Hook path up to 104 metres
Universal. Safe. Rugged.
Every DH hoist is built from perfectly matched, robust components. That means you get a solution that fits—even for the unusual applications. In operation all over the world, the Demag DH delivers safety and reliability, day in and day out.
Product information
Built for tough jobs and precise moves
The DH hoist handles high start/stop frequencies and heavy duty cycles without breaking a sweat. Thanks to mechanical microspeed and conical-rotor brake motors, it keeps performing—even in high ambient temperatures.
Positioning you can count on:
1:10 mechanical microspeed for highly precise moves
NEW: Frequency-controlled lifting now available as a standardised option
Flexible and reliable:
Rope drums with multi-groove designs
Geared limit switch monitors limit positions safely and reliably
Torsionally rigid frame—bolt it on from any side
Rope lead-off in any direction

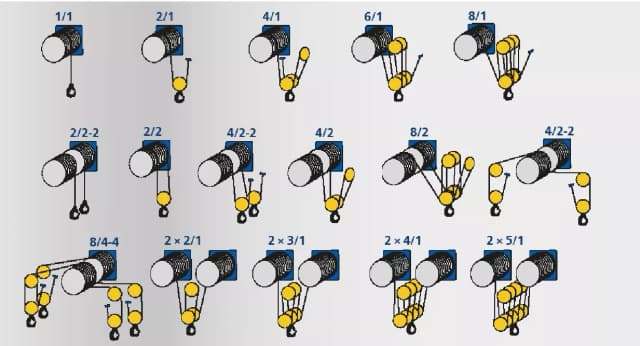

Rope reeving built to your specs
Wide range of lifting speeds
Choose with or without electric equipment
Broad range of industry solutions available
Stationary or mobile? Your call.
The DH adapts to you—whether fixed in place or travelling on a crane.
Trolleys built to last
Travel wheels made from high-strength spheroidal-graphite cast iron
Gentle on the track and quiet running—effective vibration damping
Self-lubricating effect from embedded nodular graphite means lower friction, higher wear resistance
Special wheel shape distributes load evenly, keeping forces centred on the girder
Generously sized anti-friction bearings for long service life

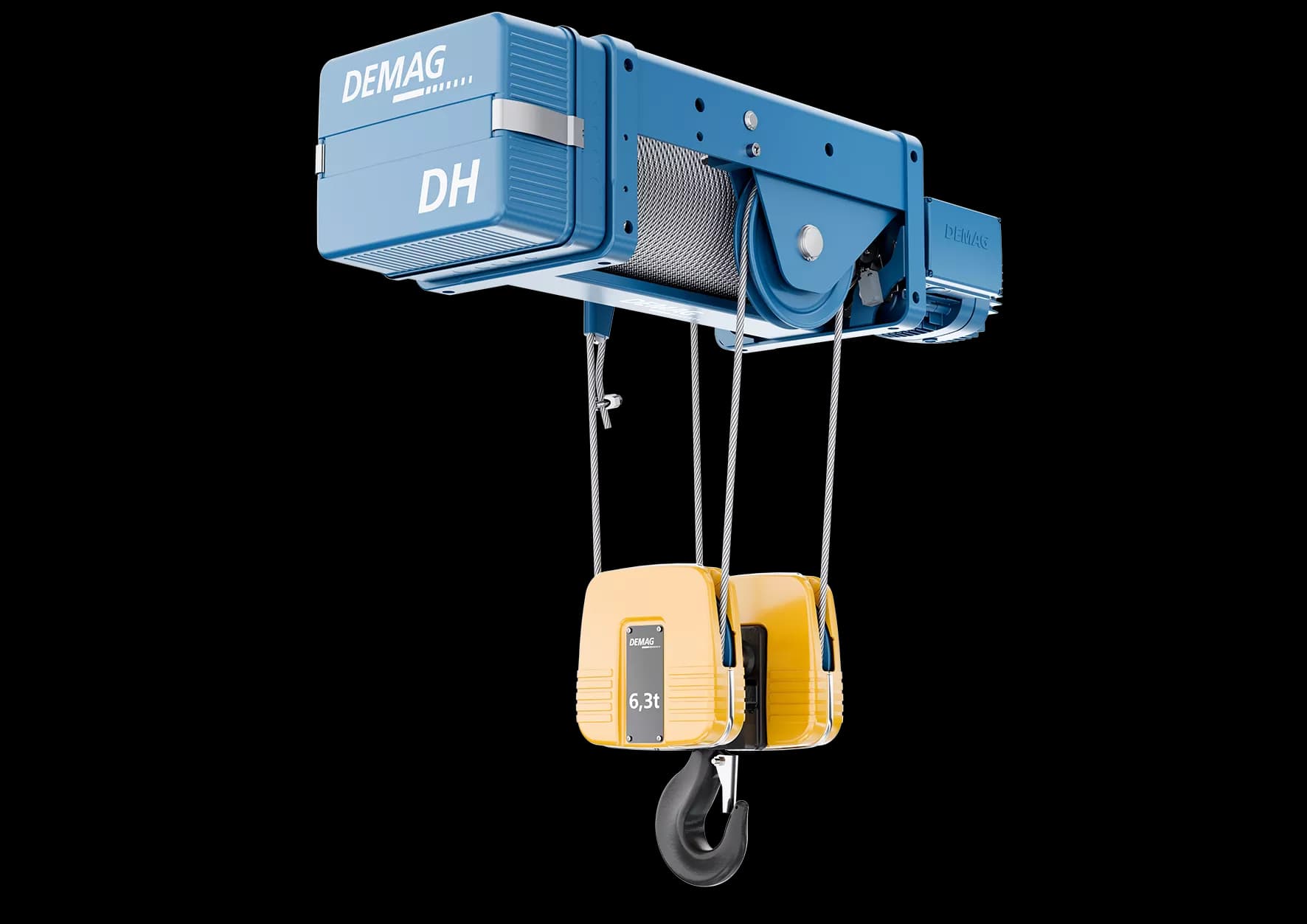

Demag F-DH hoist units – direct connection
Square frame design—mount it on any side
Load capacity: up to 100 tonnes
EK-DH low-headroom monorail hoist
Trolley designed with a favourable C-dimension—fits in tight spaces
Also available as an articulated trolley
Load capacity: up to 16 tonnes

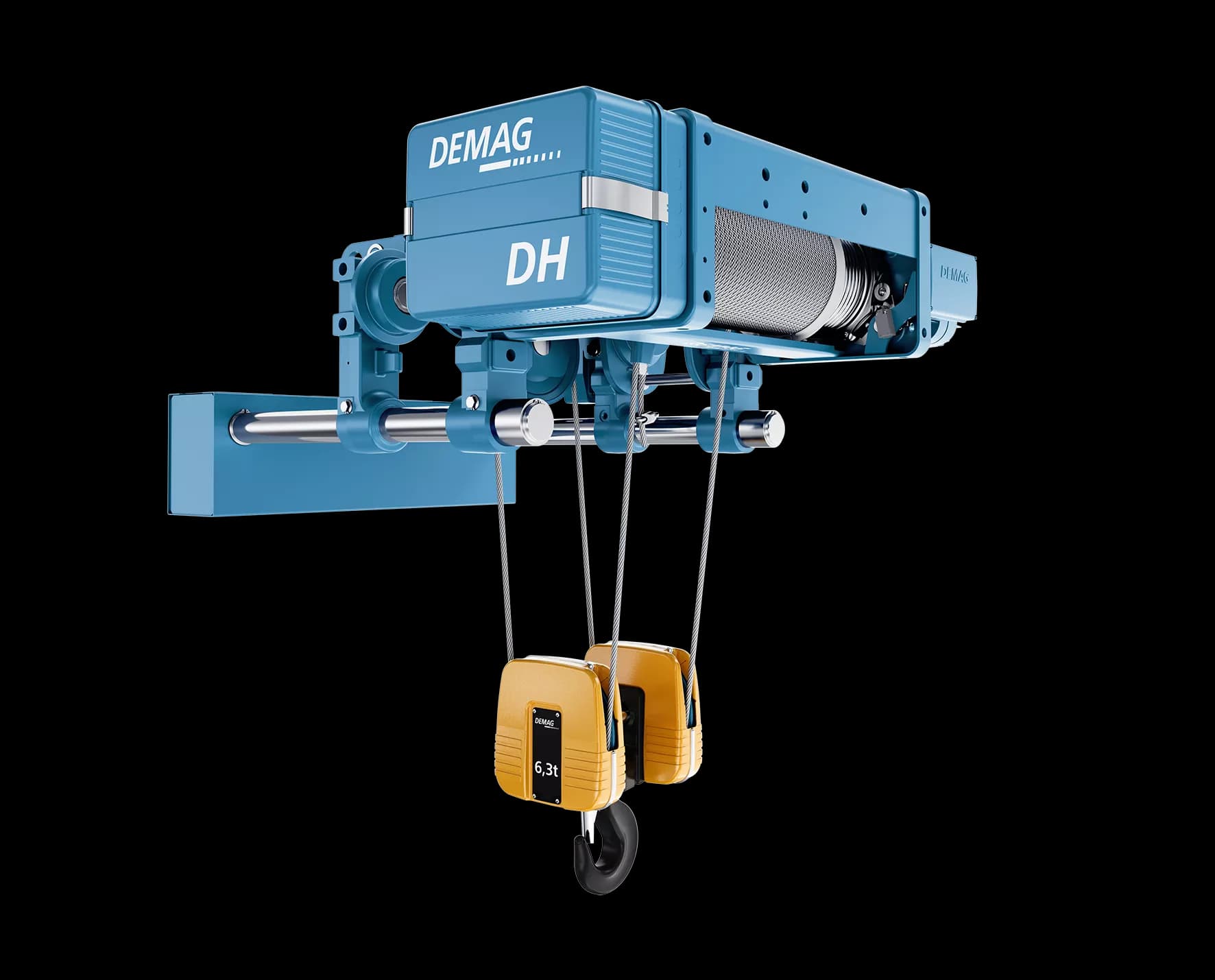

EU-DH standard-headroom monorail hoist
Cost-effective solution for monorails
Infinitely variable flange width adjustment—fits different beam sizes easily
Also available as EUD-DH articulated trolley
Load capacity: up to 16 tonnes (optionally up to 50 tonnes)

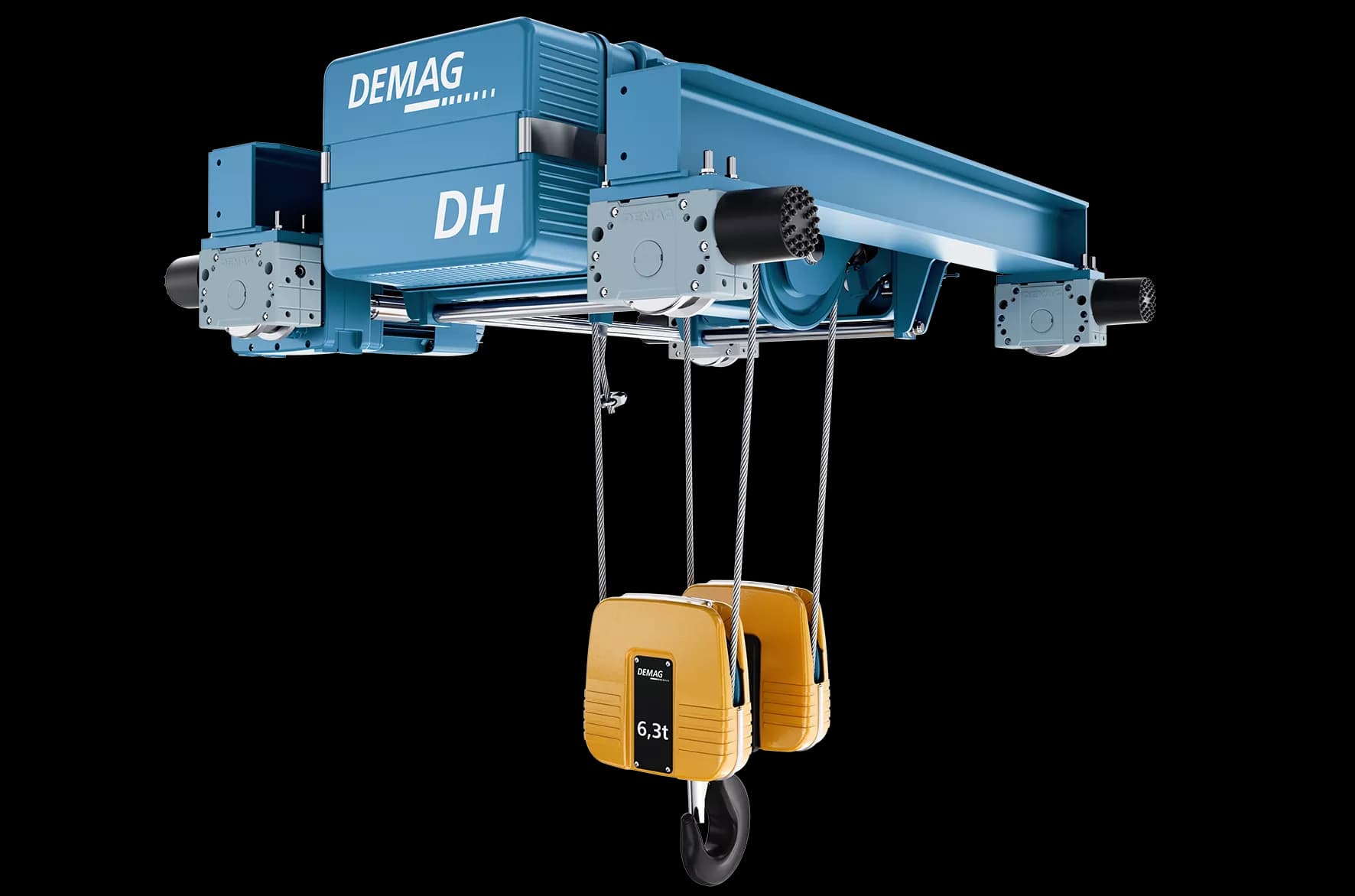

EZ-DH double-rail crab
Designed for higher load capacities on double-girder cranes
Low-headroom design – makes efficient use of space
Favourable approach dimensions
Load capacity: up to 100 tonnes
Customised motions – precise, rugged, high performance
Three drive concepts. One reliable foundation. All “Made in Germany.“
Drive with main and creep lifting speeds
Conical-rotor brake motors with outputs up to 40 kW
Pole-changing motors handle extremely high switching frequencies
Mechanical connection between brake and rotor = high braking capacity, no extra controls needed
Motor temperature monitoring comes standard
Drive for infinitely variable lifting speeds
ZBA cylindrical-rotor brake motors + Dedrive Compact frequency inverters
Infinitely variable speeds, smooth and powerful
Features:
Motor outputs up to 40 kW
Inverter-controlled brake motor
External pulse generators for speed feedback
Brake with adjustment and release monitoring
Standard motor temperature monitoring
Ready for customer drives and control solutions
Main and creep lifting speeds with F6 pole-changing
Proven Demag KBH squirrel-cage motors
Reliable and efficient—even with high duty factor
Main and creep lifting speeds with F10 mechanical microspeed
Separate motors for main and creep motions
Particularly precise positioning
High braking capacity—even during power failure
No control devices needed for reliable braking
Protection against extreme loads – precisely guided
Demag DH hoist units come with rope guides built for the tough stuff—inclined pull, load sway, rope vibrations. They're made from tough, wear-resistant plastic and can handle angled pulls up to 4° without the rope touching the guide. Easy to maintain: Two-part design means you can replace them without special tools. Need something stronger? Reinforced versions are available for demanding applications.

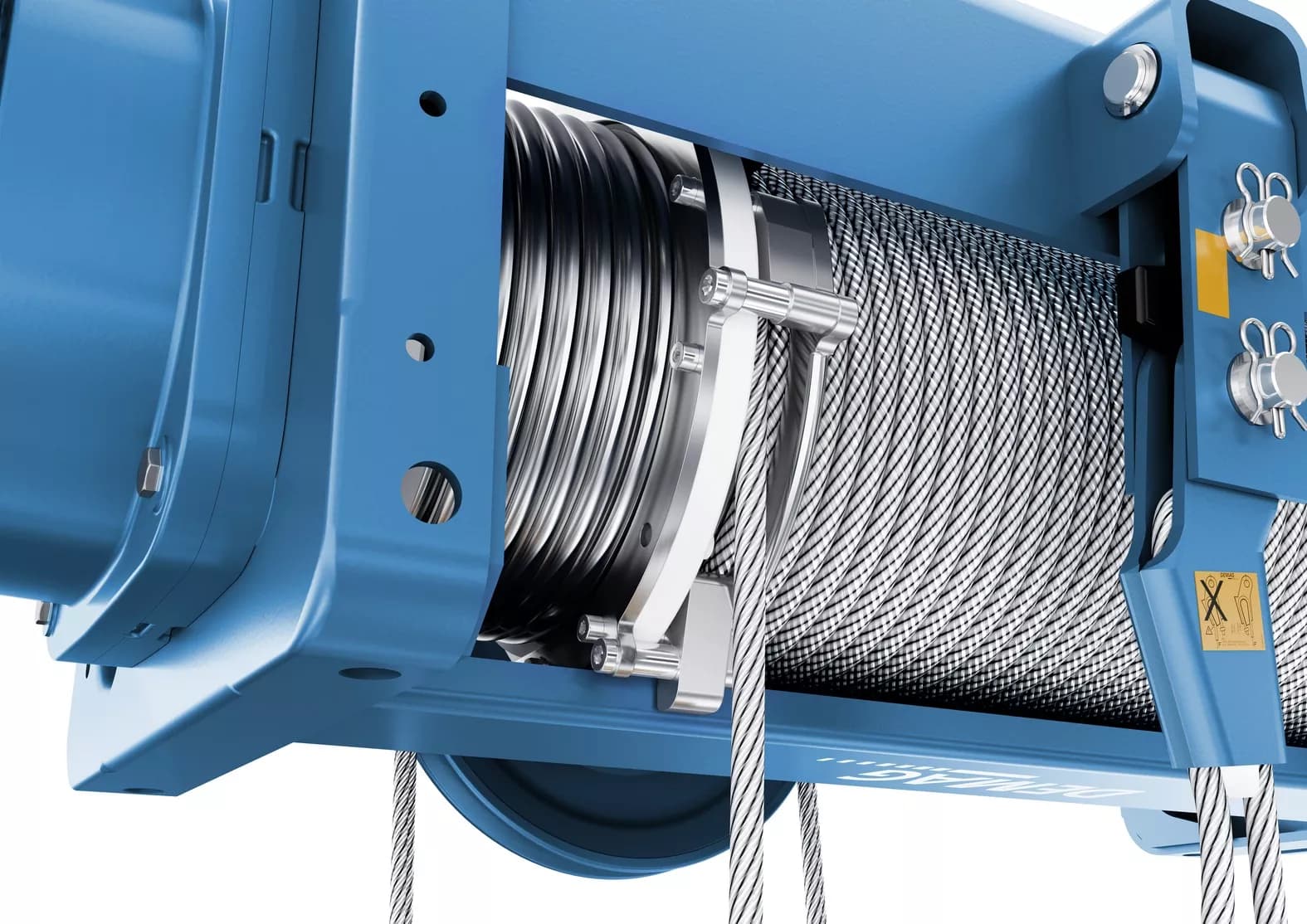

Standard PA12 rope guide
Wear-resistant, acid-resistant PA12 plastic
Enclosed design with pressure roller provides built-in slack rope protection

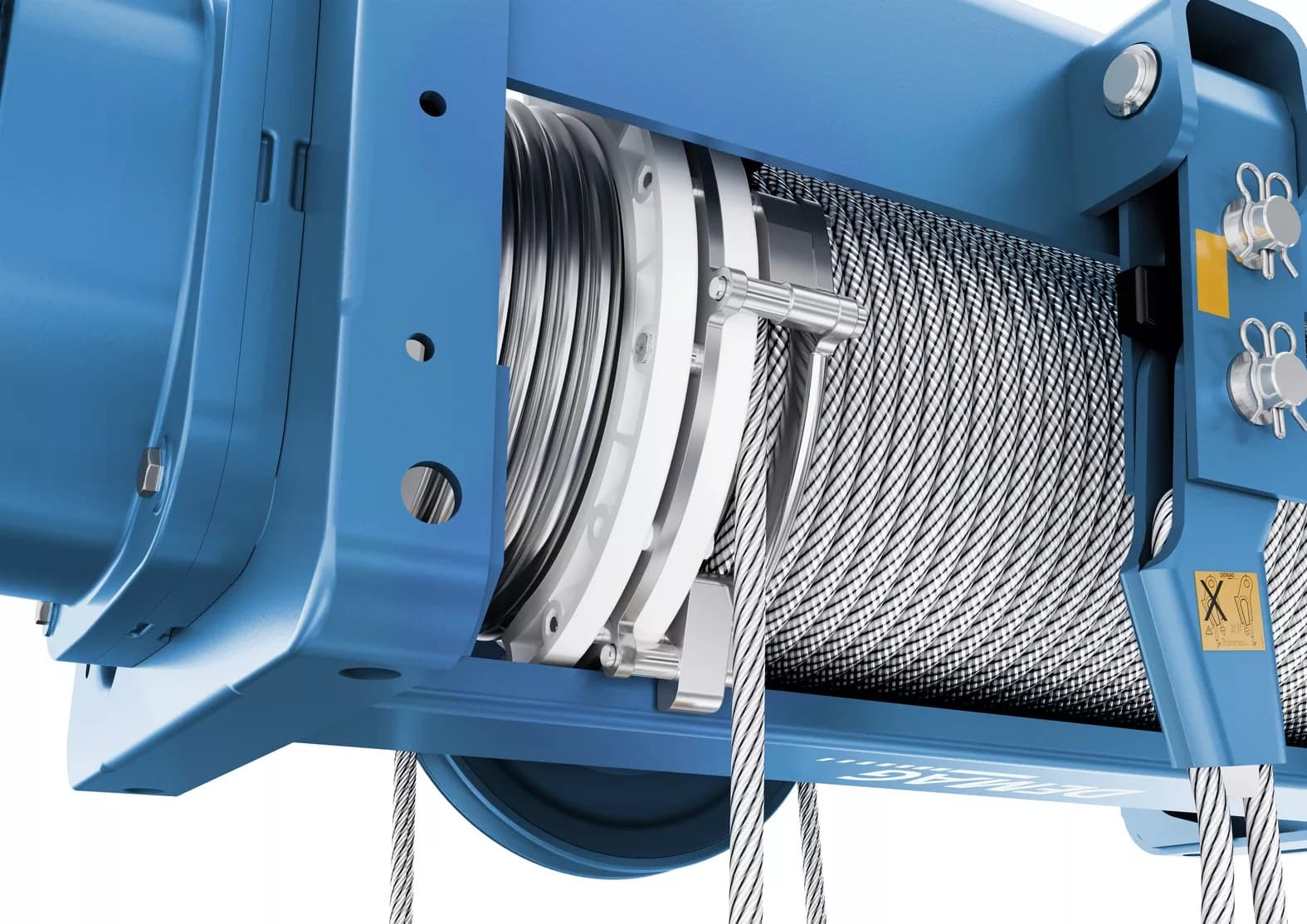

Rope Guide Type F
Frost-resistant and reinforced
Built for outdoor use in harsh environments

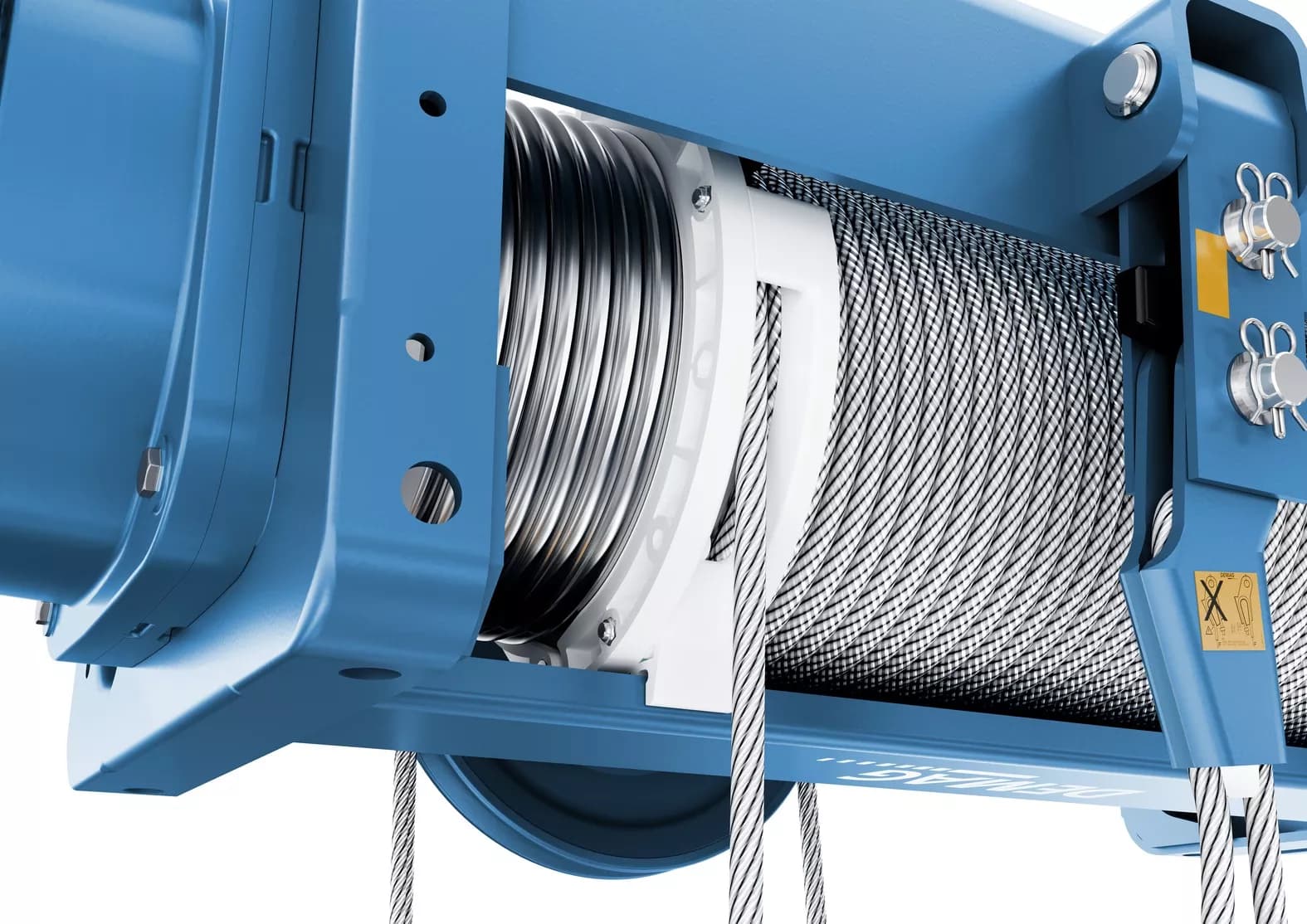

Rope Guide Type S
Heavy-duty construction
Double reinforced for medium inclined tensile loads
Performs reliably even at low temperatures
Double Rope Guide Type DSZ
Designed for heavy-duty hoist units with double-groove drum
Ideal for tough conditions—magnet or grab operation
Helps reduce load sway
The right variant for every application
