Our Z cylindrical-rotor motors are built to handle a wide range of industrial drive applications with reliability and efficiency. They are designed to deliver strong performance and work smoothly across many different operating conditions.
These motors are a dependable choice for industries that require consistent power and long-term performance.
With these features, our cylindrical-rotor motors help ensure efficient operation and easier system planning for industrial applications.

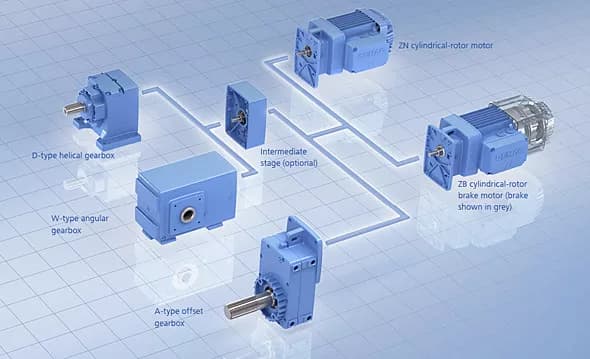

Our gearbox and Z cylindrical-rotor motors can be easily combined using specially designed end caps. This setup creates a compact and efficient drive solution that ensures smooth power transmission between the motor and gearbox.
By using end-cap connections, the motor and gearbox fit perfectly together, reducing installation complexity and saving valuable engineering time. It also helps improve reliability and overall system performance.
These combinations are ideal for industrial drive systems where space-saving design, easy integration, and dependable operation are important. The modular design also allows flexible configurations to match different application requirements.

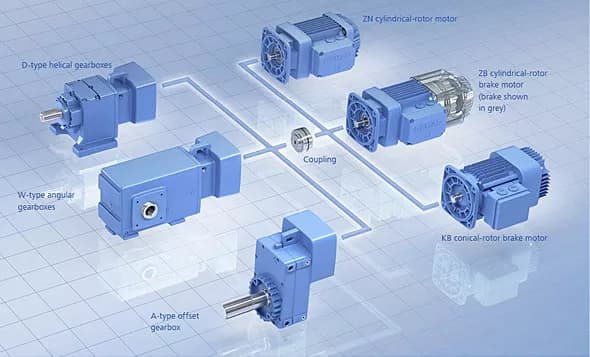

Gearbox and motor combinations can also be connected using a Demag coupling shaft end. This setup works with Z cylindrical-rotor motors as well as KB conical-rotor brake motors, providing a flexible and reliable drive solution.
In this configuration, the motor and gearbox are connected using an intermediate flange along with a roller spider coupling. This design ensures smooth power transmission while reducing vibration and mechanical stress.
The coupling connection also makes installation and maintenance easier, while allowing better alignment between the motor and gearbox. As a result, it helps improve overall performance, reliability, and service life of the drive system.
| DesignationZBA = braked | Output [kW]60% CDF / 60 °C temp. |
|---|---|
| ZBA 63 B4 | 0.18 |
| ZBA 71 A4 | 0.25 |
| ZBA 71 B4 | 0.37 |
| ZBA 80 A4 | 0.55 |
| ZBA 80 B4 | 0.75 |
| ZBA 90 A4 | 1.1 |
| ZBA 90 B4 | 1.5 |
| ZBA100 AL4 | 2.2 |
| ZBA 100 B4 | 3 |
| ZBA 112 A4 | 4 |
| ZBA 132 AL4 | 5.5 |
| ZBA 132 B4 | 7.5 |
| ZBA 132 B4 | 9.5 |
| ZBA 160 AL4 | 11 |
| ZBA 160 B4 | 15 |
| ZBA 180 A4 | 18.5 |
| ZBA 180 B4 | 22 |
| ZBA 200 A4 | 30 |
| ZBA 225 AL4 | 37 |
| ZBA 225 B4 | 45 |
| Designation ZBE = braked | Output [kW] 100% CDF / 40 °C temp. | η50 | η75 | η100 |
|---|---|---|---|---|
| ZBE 63 B4 | 0.18 | 66.5 | 71.2 | 72.1 |
| ZBE 71 A4 | 0.25 | 69.5 | 74 | 74.9 |
| ZBE 80 A4 | 0.55 | 78 | 78.3 | 78.1 |
| ZBE 80 B4 | 0.75 | 79.3 | 82 | 82.6 |
| ZBE 90 A4* | 1.1 | 79.8 | 82.3 | 81.4 |
| ZBE 90 B4 | 1.5 | 82.1 | 83.4 | 82.8 |
| ZBE 100 A4* | 2.2 | 83.8 | 84.9 | 84.3 |
| ZBE 100 B4 | 3 | 83.6 | 86.4 | 85.7 |
| ZBE 112 A4* | 4 | 86 | 87.4 | 86.6 |
| ZBE 132 A4* | 5.5 | 87.8 | 89.1 | 88.5 |
| ZBE 132 B4* | 7.5 | 87.5 | 90.3 | 89.7 |
| ZBE 160 A4 | 11 | 89 | 90.8 | 90.8 |
| ZBE 160 B4* | 15 | 89.7 | 90.9 | 91.2 |
| ZBE 180 A4 | 18.5 | 89.3 | 92.4 | 91.2 |
| ZBE 180 B4 | 22 | 89.2 | 92.3 | 91.6 |
| ZBE 200 A4 | 30 | 90.6 | 92.6 | 92.5 |
| ZBE 225 A4* | 37 | 91.5 | 93.2 | 93 |
| ZBE 225 B4* | 45 | 92.2 | 93.5 | 93.1 |
| Designation ZBP = braked | Output [kW] 100% CDF / 40 °C temp. | η50 | η75 | η100 |
|---|---|---|---|---|
| ZBP 80 B4 | 0.55 | 76.6 | 81.1 | 80.8 |
| ZBP 90 A4 | 0.75 | 80.5 | 82.9 | 82.5 |
| ZBP 90 B4 | 1.1 | 82.5 | 85.6 | 84.1 |
| ZBP 100 A4 | 1.5 | 84.8 | 86.2 | 85.3 |
| ZBP 100 B4 | 2.2 | 83.5 | 85.6 | 86.7 |
| ZBP 112 A4 | 3 | 85.1 | 87.7 | 87.7 |
| ZBP 132 A4 | 4 | 87.9 | 89.6 | 88.6 |
| ZBP 132 B4 | 5.5 | 87.3 | 89.4 | 89.6 |
| ZBP 160 A4 | 7.5 | 89.3 | 91.2 | 91 |
| ZBP 160 B4 | 11 | 89.9 | 91.1 | 91.4 |
| ZBP 180 A4 | 15 | 90.2 | 91.5 | 92.1 |
| Designation | Output [kW] 40/40% CDF, 40 °C temp. |
|---|---|
| ZBF 63 A 8/2 | 0.06/0.25 |
| ZBF 71 A 8/2 | 0.09/0.34 |
| ZBF 80 A 8/2 | 0.13/0.5 |
| ZBF 90 B 8/2 | 0.2/0.8 |
| ZBF 100 A 8/2 | 0.29/1.2 |
| ZBF 112 A 8/2 | 0.46/1.9 |
| ZBF 132 A 8/2 | 0.72/2.9 |
| ZBF 132 B 8/2 | 0.88/3.5 |
