Built on a Simple Idea: Power Meets Reliability

Need to connect it to a gearbox? No problem, the KB motor adapts easily via a coupling.

Product information

Starting and Stopping with Maximum Performance

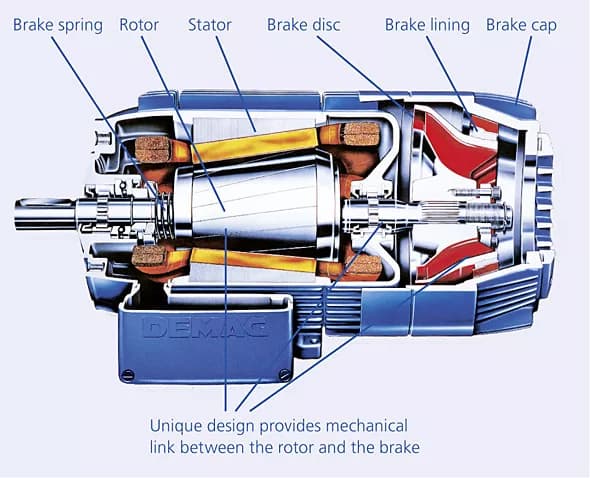

Our KB conical-rotor brake motors are known for their simple design, strong construction, and reliable performance. One of their key advantages is a unique braking principle where the brake is mechanically connected to the rotor. Because of this design, there is no need for separate control systems or additional switching components.

This smart design offers several important benefits:
  • Very high braking performance
  • Suitable for extremely high switching frequencies
  • Available as two-speed pole-changing motors
  • Ideal for starting-and-stopping applications and direct line-fed travel motions
  • Resistant to temporary overload, ensuring reliable operation even under demanding conditions

For flexible drive solutions, KB motors can also be connected to gearboxes using a coupling, making them suitable for a wide range of industrial applications.

High-Performance Motor

Our KB conical-rotor brake motors are designed to deliver powerful performance, durability, and reliable braking for demanding industrial applications. With their compact design and strong braking system, these motors are ideal for applications that require frequent starting and stopping.

  • Motor output up to 55 kW (at 40% CDF)
  • Available with 2, 4, 6, or 8 poles
  • Two-speed pole-changing motors for flexible operation
  • KBA models designed for starting-and-stopping drives
  • KBF models suitable for direct line-fed travel motions
  • Extremely robust brake system
  • No switching elements or separate control systems required

    Advanced Design Benefits:

  • Long brake lining service life due to effective heat dissipation through the large brake cover surface
  • Short overall motor length with excellent heat dissipation, as the brake disc also functions as the motor fan
  • Two brake disc options:Light design for KBA motors Heavy design with higher moment of inertia for KBF motors
  • Allows extremely high switching frequency
  • Resistant to temporary overload, ensuring reliable performance in demanding conditions

Coupling Connection

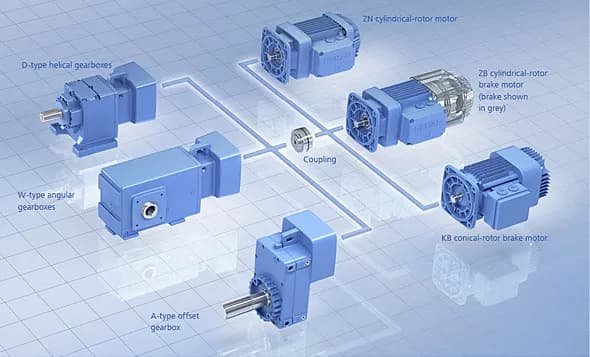

Gearbox and motor combinations can be connected using a Demag coupling shaft end, which works with both Z cylindrical-rotor motors and KB conical-rotor brake motors.

In this setup, the motor and gearbox are joined using an intermediate flange along with a roller spider coupling. This connection helps ensure smooth and efficient power transmission between the motor and gearbox.

The coupling design also helps absorb minor misalignments and reduces vibration, which improves the overall reliability and service life of the drive system. It provides a flexible and practical solution for many industrial drive applications while making installation and maintenance easier.

For outputs up to 55 kW: 4-pole KBA motors

DesignationOutput [kW] 40% CDFBraking Torque [Nm]
KBA 71 A40.486.7
KBA 71 B40.728.7
KBA 80 A41.0514.5
KBA 80 B41.317.5
KBA 90 A41.6523
KBA 90 B4229
KBA 100 A42.438
KBA 100 B4348
KBA 112 B4 A3.656
KBA 112 B44.568
KBA 125 B4 A682
KBA 125 B47.494
KBA 140 B4 A9.6130
KBA 140 B411.5166
KBA 160 B420215
KBA 180 A430335
KBA 200 B440430
KBA 225 B455610
moter
DesignationOutput [kW] 40/40% CDFBraking Torque [Nm]
KBF 71 A 8/20.04/0.21.4
KBF 71 B 8/20.06/0.31.6
KBF 80 A 8/20.13/0.53.2
KBF 90 A 8/20.2/0.85.2
KBF 100 A 8/20.26/1.27
KBF 112 A 8/20.42/1.911.8
KBF 125 A 8/20.65/2.917
KBF 140 A 8/21.1/4.524.3

Motors

OptionsCylindrical-rotor motor
(Z)		Conical-rotor brake motor
(KB)
Winding protection
PTC thermistor••
Temperature detectors••
Rotary encoder
Integral pulse generator••
External pulse generator••
Integrated external pulse generator•
Electrical plug connector••
Increased enclosure••
Anti-condensation heater
Heating tape••
Via motor winding•
External fan
Additional integrated fan•
Additional external fan••
Heavy fan•
Heavy brake disc•
Canopy/round protection panel••

Brakes

OptionsCylindrical-rotor motor
(Z)		Conical-rotor brake motor
(KB)
Manual brake release unit••
Brake function monitoring•
Brake adjustment monitoring•
Sealed/increased enclosure•
Various control modules•
Enclosed brake compartment•
Emergency-stop brake lining•
