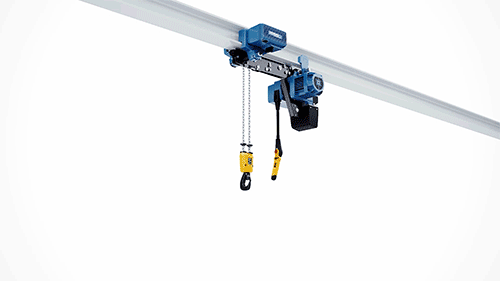

The combination of long load bars and a low lifting height can cause problems in some applications. KLDC travelling hoists for big bags combine the maximum lifting height of a Demag KDC low-headroom travelling hoist with an extended hook lead-off, which enables the load to be lifted to the highest hook position. This results in maximum utilisation of the C dimension for handling loads weighing up to 2,000 kg.
Together with the modular Demag KBK light crane system, this creates a winning combination for the convenient handling also of bulky loads. KLDC travelling hoists for big bags are equipped with operating limit switches for the highest and lowest hook position and can be operated with 2-stage as well as variable lifting and travel speeds.
The components installed in the DC chain hoist range feature reliability and a long service life. The generously specified gearbox allows for FEM classification up to 4m and, therefore, 6,300 hours of operation for demanding applications.
