Single-handed operation

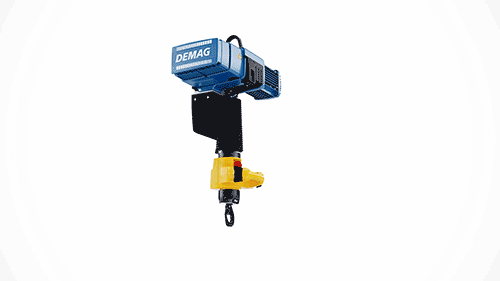

Our DCMS-Pro Manulift combines fast and reliable load handling with variable speed control and operation with only one hand. It is based on the lifting unit of our DCS-Pro chain hoist and our DSM-CS control unit. The wide range of performance offered by the DCMS-Pro:

Chain hoist operation and load handling with one hand
Safe, reliable and precise positioning of sensitive goods and valuable products thanks to variable speed control
Fast lifting motions at almost double the rated speed in the partial load range
Quick-change coupling for a reliable hold
Simple replacement of the load handling attachment
Suitable for right-hand and left-hand operation

Product Information

Maximum ease of operation

Infinitely variable speed control for lifting and lowering motions over the entire load range
Exceptionally fine control at slow speed
Smooth starting and exact positioning
Creep lifting speed from 0.15 m/min
Lifting speed, acceleration and braking ramp can be simply modified via the control unit
Suitable for right-hand and left-hand operation

Versatile performance

The various Manulift load handling attachments can be changed with ease
Pro-Hub function for up to 90 per cent higher nominal speed for partial load or no-load operations
Automatic switchover to creep lifting speed before the upper/lower limit positions are reached – speed ratio 1:100

High safety and reliability

Motor temperature monitoring device
Acceleration and braking ramps to reduce load sway

DCMS-Pro Manulift (variable lifting speed)

Load Capacity (kg)	Manulift type (DCMS-Pro )	Lifting speed at 50/60 Hz (m/min)	Hook path (m)	FEM	Reeving	Weight [kg] for hook path
80	1	0.15–30	2.8 and 4.3	4m	1/1	2.8m: 25, 4.3m: 27
125	1	0.15–30	4m	4m	1/1	4m: 27
200	2	0.15–16	4m	2m*	1/1	4m: 27
250	2	0.15–16	2m*	2m*	1/1	2m*: 27

DCRS-Pro rocker switch (variable lifting speed)

Load Capacity (kg)	Manulift type (DCRS-Pro )	Lifting speed at 50/60 Hz (m/min)	Hook path (m)	FEM	Reeving	Weight [kg] for hook path (2.8m - 4.3m)
80	1	0.15–30	2.8 and 4.3	4m	1/1	2.8m: 25, 4.3m: 27
125	1	0.15–30	4m	4m	1/1	2.8m: 25, 4.3m: 27
200	2	0.15–16	3m	2m*	1/1	2.8m: 25, 4.3m: 27
250	2	0.15–16	2m*	2m*	1/1	2.8m: 25, 4.3m: 27

* '2m*' corresponds to 1,900 hours at full load.
